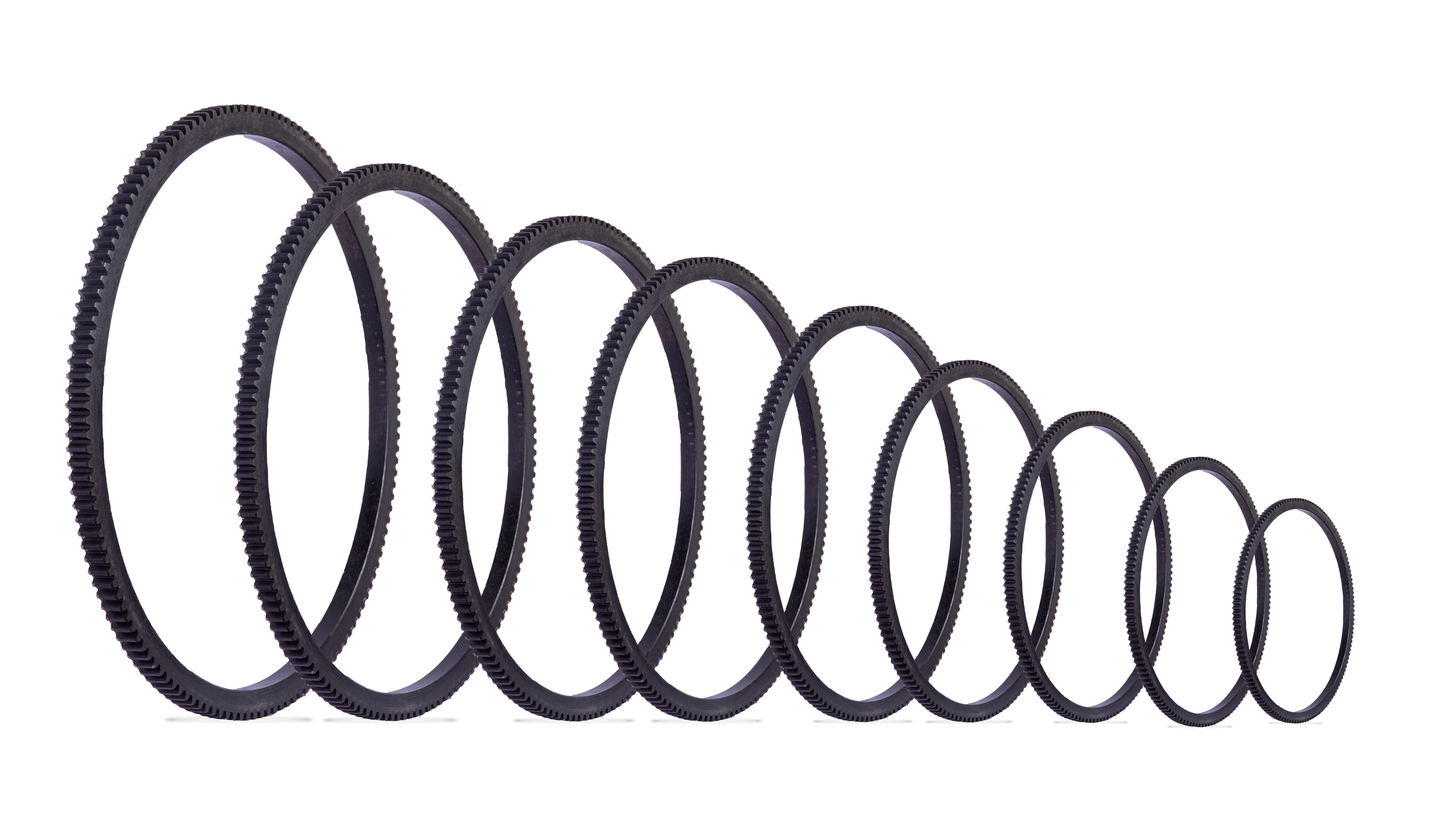

Starter Ring Gear is a medium carbon steel ring with teeth that is fitted
on the periphery of a flexplate or flywheel of an internal combustion engine.
It's primary function is to transfer torque from the starter motor pinion to
the flywheel or flexplate to rotate the engine to begin the cycle.
A Starter Ring Gear is most commonly made by forming a length of square
or rectangular steel bar into a circle and welding the ends together.
This ring is then machined to create flat surfaces of the required inner and
outer diameters. The gear teeth are then created using a hobbing tool,
followed by processes to chamfer, debur and clean the gear teeth.
At Millenium Precision till date, we have manufactured 450+ variants of Starter Ring Gears. Here is a list of key design parameters & the feasible ranges that we are capable of delivering through our state of that art manufacturing facility:
KEY PARAMETER | FEASIBLE RANGE |
---|---|
Internal Diameter | 180-500 mm |
Outer Diameter | 200-550 mm |
Thickness | 8-50 mm |
Radial Width | 8-50 mm |
Module | 2-8 Max |
Pressure Angle | 12° - 20° |
RM Grade | C-45 /S-48 C/CK-45 |
Tooth Chamfer Type | 8 Variants |
Hardness Pattern | 4 Variants |
Special Operations | Drilled/ Tapped Holes, Steps, Blind Hole, Groove, Face Taper, Tooth Milling Etc. |
